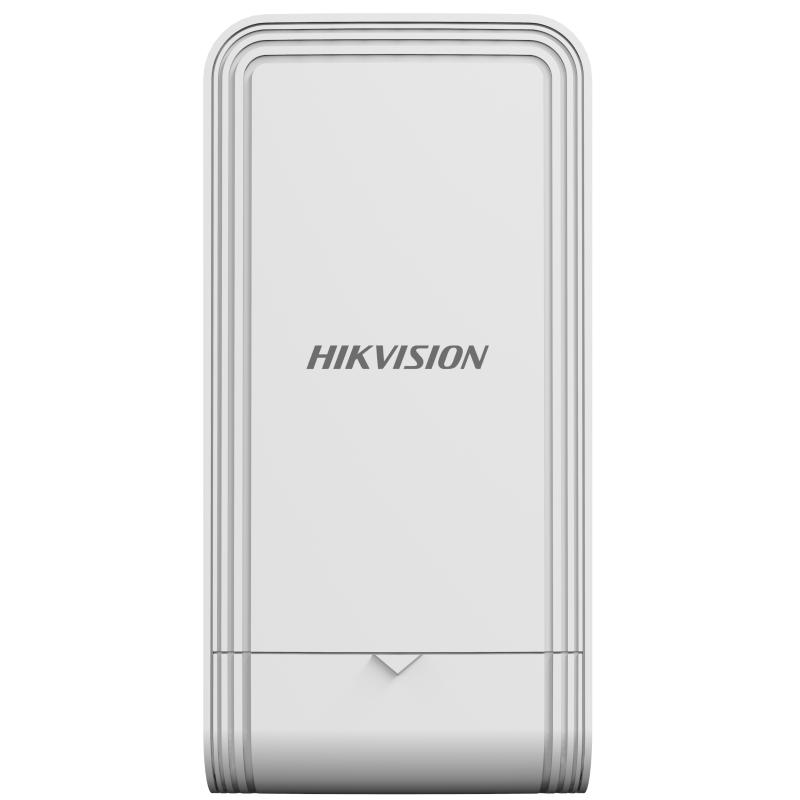

DS-3WF02C-5AC/O 5Ghz 867Mbps 5km Outdoor Wireless CPE

Name: DS-3WF02C-5AC/O 5Ghz 867Mbps 5km Outdoor Wireless CPE
Brand: Hikvision
SKU: 30658
Availability: InStock

₨ 13,800

In Stock

Categories: Network, Wireless Bridge

Description

Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62” × 7.36” × 2.28”)
Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″)
Net Weight0.307 kg (0.677 lb)
Gross Weight0.807 kg (1.779 lb)
Packing ListQuick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,10/100/1000 Mbps PoE Injector × 1
Packing MethodSingle unit packing
Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity5% to 95% (no condensation)
Installation ModePole Mounting
Ingress ProtectionIP55
Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

Wireless Parameter
Max. Transmission Rate of Air Interface≤ 867 Mbps
Wireless StandardIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
Antenna Gain12 dBi
Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity-84±2dBm@AC80-MCS0
Throughput RatePTP: ,230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): ,80 Mbps/1 KM(AC80)

Software Function
Application FunctionTDMA,DFS,TPC,IFM,IPM
Channel Width20/40/80 MHz
Channel SelectionAuto/manual selection
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management MethodWeb,iVMS-4200,HCP,HPP
System LogSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Reboot device

2. Restore device

3. Display the topology information

4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate

5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

6. Bridge alignment

7. Spectrum scanning

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
