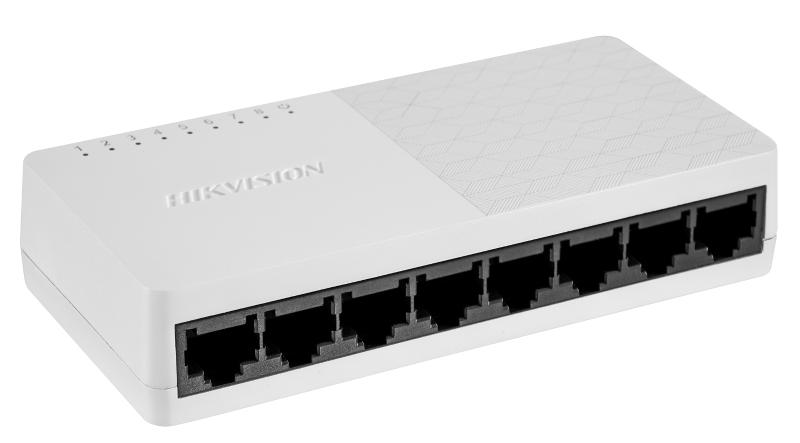

DS-3E0108D-O 8-Port Fast Ethernet Plastic Switch
₨ 1,900
- 8 x 10/100 Mbps ethernet port
- Supports MDI/MIDX
- Store-and-forward switching
- Supports MAC address auto-learning and aging
- Simple, compact body design
- Supports desktop and wall-mounting installation
- Plug & play, easy to use
Warranty: 2 – Years Local
In Stock
Description
- ShellABS
- Net Weight0.059 kg (0.13 lb)
- Dimensions (W × H × D)124.00 mm × 22.00 mm × 52.00 mm (4.88” × 0.87” × 2.05”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply5 VDC, 0.6 A
- Installation ModeDesk-Mounted
- Max. Power Consumption3 W
- Surge Protection2 KV
- Network Parameters
- Ports8 × 10/100 Mbps RJ45 port
- MAC Address Table2 K
- Switching Capacity1.6 Gbps
- Packet Forwarding Rate1.19 Mpps
- Internal Cache768Kbits
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
