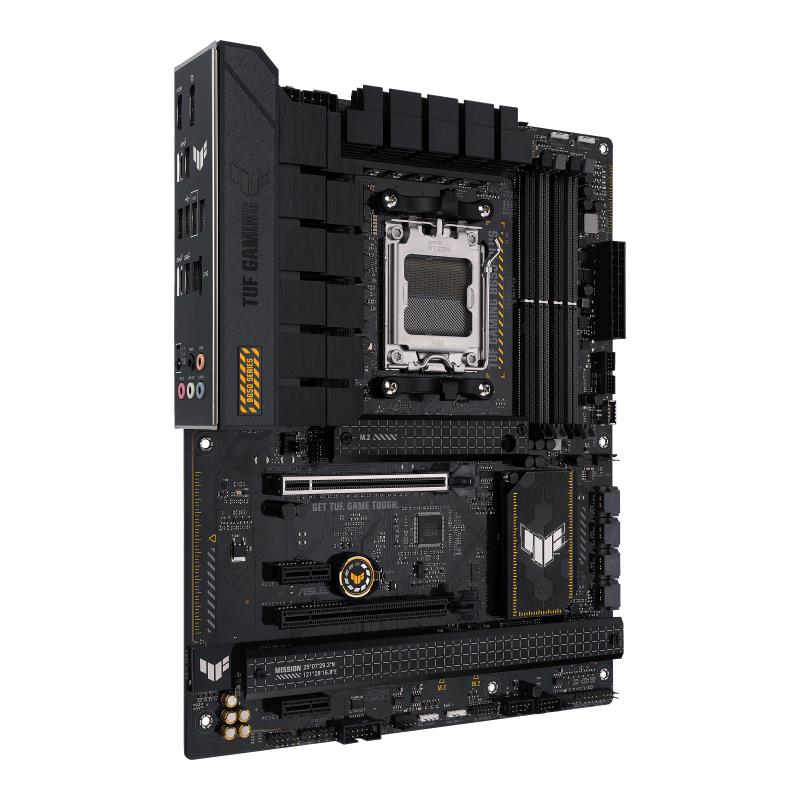

Asus Tuf Gaming B650-Plus DDR5 AMD AM5 ATX Motherboard

TUF GAMING B650-PLUS

ASUS TUF GAMING B650-PLUS AMD Ryzen AM5 ATX motherboard, 14 power stages, PCIe 5.0 M.2 support, DDR5 memory, 2.5 Gb Ethernet, USB4 support and Aura Sync

• AMD AM5 socket: Ready for AMD Ryzen 7000 Series desktop processors
• Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• Made for online Gaming: Realtek 2.5 Gb Ethernet and TUF LANGuard
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 2+ utility in Armoury Crate
• KSP-7: Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.

Cooler By Design

1. Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

2. Optimized M.2 Heatsink Design

All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

DDR5 OC 6400

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

PCIe 5.0 Support

TUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

*Actual transmission speed will be lower than theoretical maximum speed.

Connectivity

TUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt (USB4) expands compatibility and bandwidth even further.

1. USB 3.2 Gen 2×2 Type-C

2. PCIe 5.0

3. Front USB3.2 Gen 1 Type-C

4. USB4 Support

Teamed Power Stages

12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

ESD Guards

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

Realtek 7.1 Surround Sound

The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
