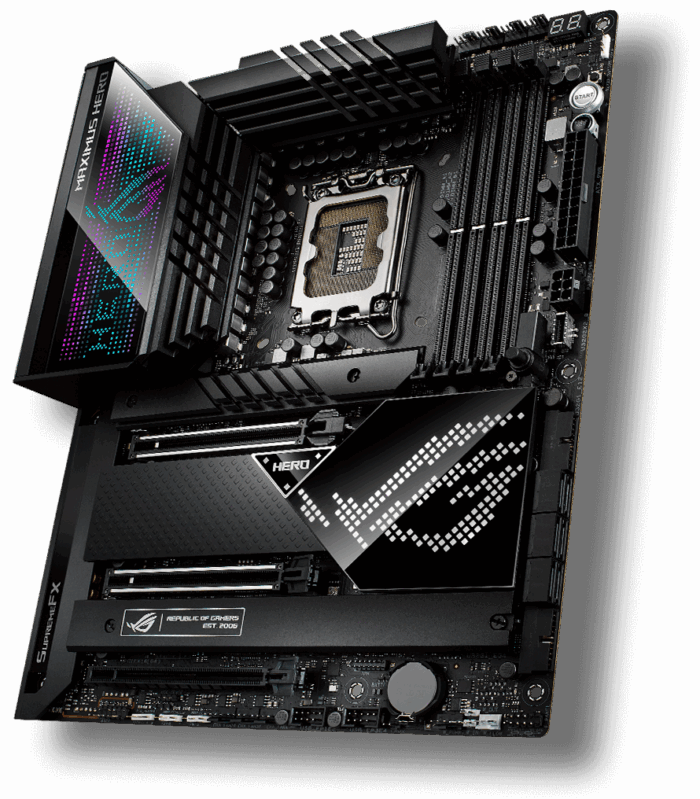

Asus Rog Maximus Z690 Hero Intel 12/13th Gen ATX Motherboard - Image 2

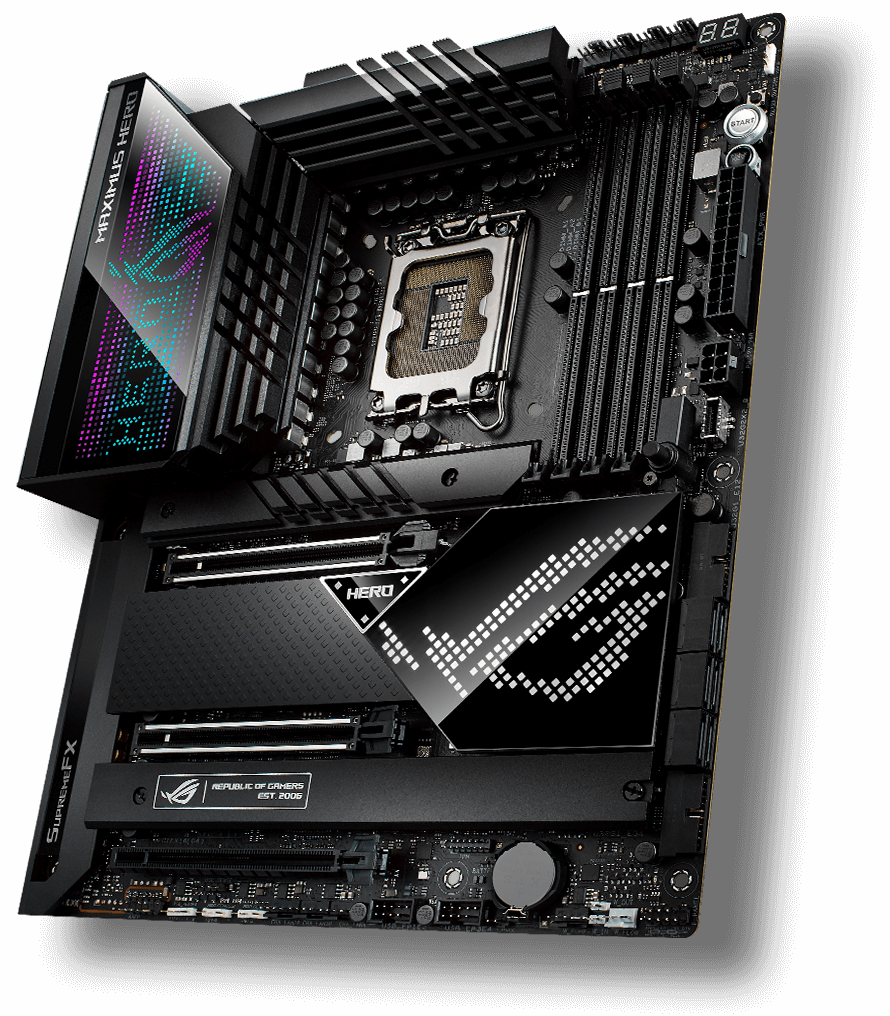

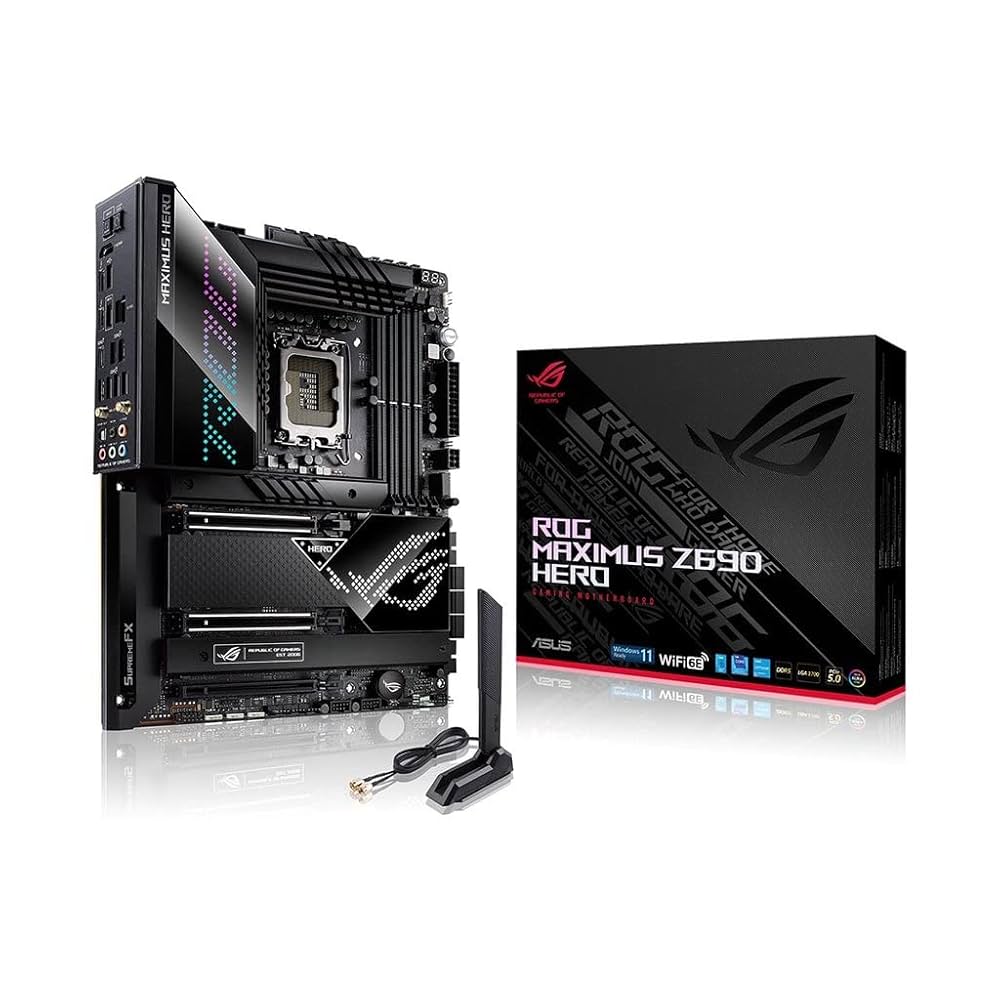

Asus Rog Maximus Z690 Hero Intel 12/13th Gen ATX Motherboard

Name: Asus Rog Maximus Z690 Hero Intel 12/13th Gen ATX Motherboard
Brand: Asus
SKU: 34550
Availability: InStock

₨ 135,000

Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGaurd.
• Fastest Gaming Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2×2 front-panel connector, dual Thunderbolt™ 4 (USB Type-C® ports).
• Industry-Leading Audio: ROG SupremeFX ALC4082 with?ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
• Unmatched Personalization: I/O cover with Polymo Lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-

Form Factor: ATX

Motherboard Type: Intel 12/13/14th Gen (LGA 1700)

Product Code: ROG MAXIMUS Z690 HERO

Brand: Asus

Warranty: 1 Year Local

View details on manufacturer’s website

In Stock

Add to compare

Add to wishlist

Categories: Asus, More, Motherboards

Description
Reviews (0)

Description

ROG MAXIMUS Z690 HERO

Intel Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2×2 front panel connector, Dual Thunderbolt 4, PCIe 5.0, Onboard WiFi 6E and Aura Sync RGB lighting.

Socket LGA 1700 for 12th Gen Intel Core, Pentium Gold and Celeron processors

Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration

Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

High-Performance Networking: Onboard WiFi 6E, Intel 2.5 Gb Ethernet, and ASUS LANGaurd

Fastest Gaming Connectivity: PCIe 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2×2 front-panel connector, dual Thunderbolt 4 (USB Type-C ports)

Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for pinpoint positioning and dynamics

Unmatched Personalization: I/O cover with Polymo Lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers

DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and ROG Graphics Card Holder

20+1 POWER STAGES

The VRM features 20+1 power stages, each rated to handle 90 amps

DDR5 OVERCLOCKING STRENGTH

Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high speed kits, but even entry level memory modules that have a locked power management IC (PMIC)

COOLER BY DESIGN

VRM and aluminum I/O heatsink

M.2 heatsinks

L-shaped heatpipe

High-conductivity thermal pad

M.2 backplates

Chipset heatsink

WiFi 6E and 2.5 Gb Ethernet

1. WiFi 6E Antenna

The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.

2. Adjustable Design

Four-way positioning enables better signal reception.

3. Magnetic Base

A powerful magnetic base secures the antenna on the top or side of the PC case.

Three Onboard M.2 Slots

ROG Maximus Z690 Hero features three onboard M.2 slots, with two offering support for the latest PCIe 4.0 SSDs.

ROG HYPER M.2 CARD PCIE 5.0 READY

If users need more M.2 storage or even faster data transfers, the bundled ROG Hyper M.2 Card features two more slots, one of which is a PCIe 5.0 and ready to perform at up to twice the speed of the accompanying PCIe 4.0 slot

USB 3.2 GEN 2X2 TYPE-C FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+

USB 3.2 Gen 2×2 adds an additional lane that can boost Type C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6 pin connector.

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal to noise ratio on the line in connection to provide best ever recording quality. There’s also a low dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an ESS 9018Q2C integrated DAC capable of reaching 115dB THD+N to provide playback that conveys all the subtlety and nuances of the audio track.

GROW YOUR GAMING WORLD

Gear up with ROG components from graphics card and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so you’ll enjoy greater choice as your system expands
