Aigo AK600 600W 80+ White PSU

Key Features

• Power 600 watts, suitable for high-end computer configuration
• Comply with Intel ATX12V specification design, support Intel, AMD full range
• Energy efficient silent fan
• Built-in PFC, dual magnetic ring magnetic amplifier circuit, high frequency low resistance filter capacitor,
• Ensure that the current is pure and stable
• 12cm hydraulic bearing fan, quiet and durable, large air volume
• Intelligent temperature control circuit design, automatically adjust fan speed, extend service life
• Large speaker capacity, large capacity, support for wide use, can still be used under unstable voltage environment general
• Multi-function protection circuit design, with overvoltage, overcurrent, overload, undervoltage, short circuit, Light protection
• Innovative pest control technology design.

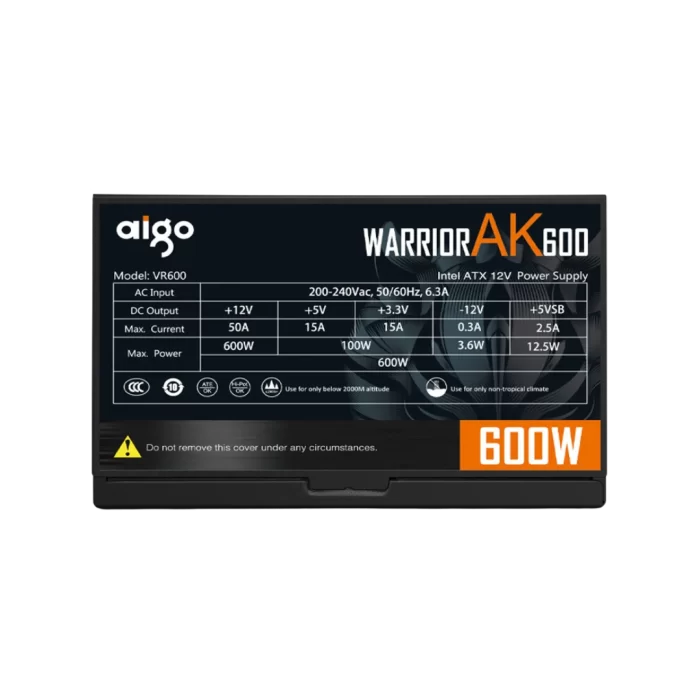

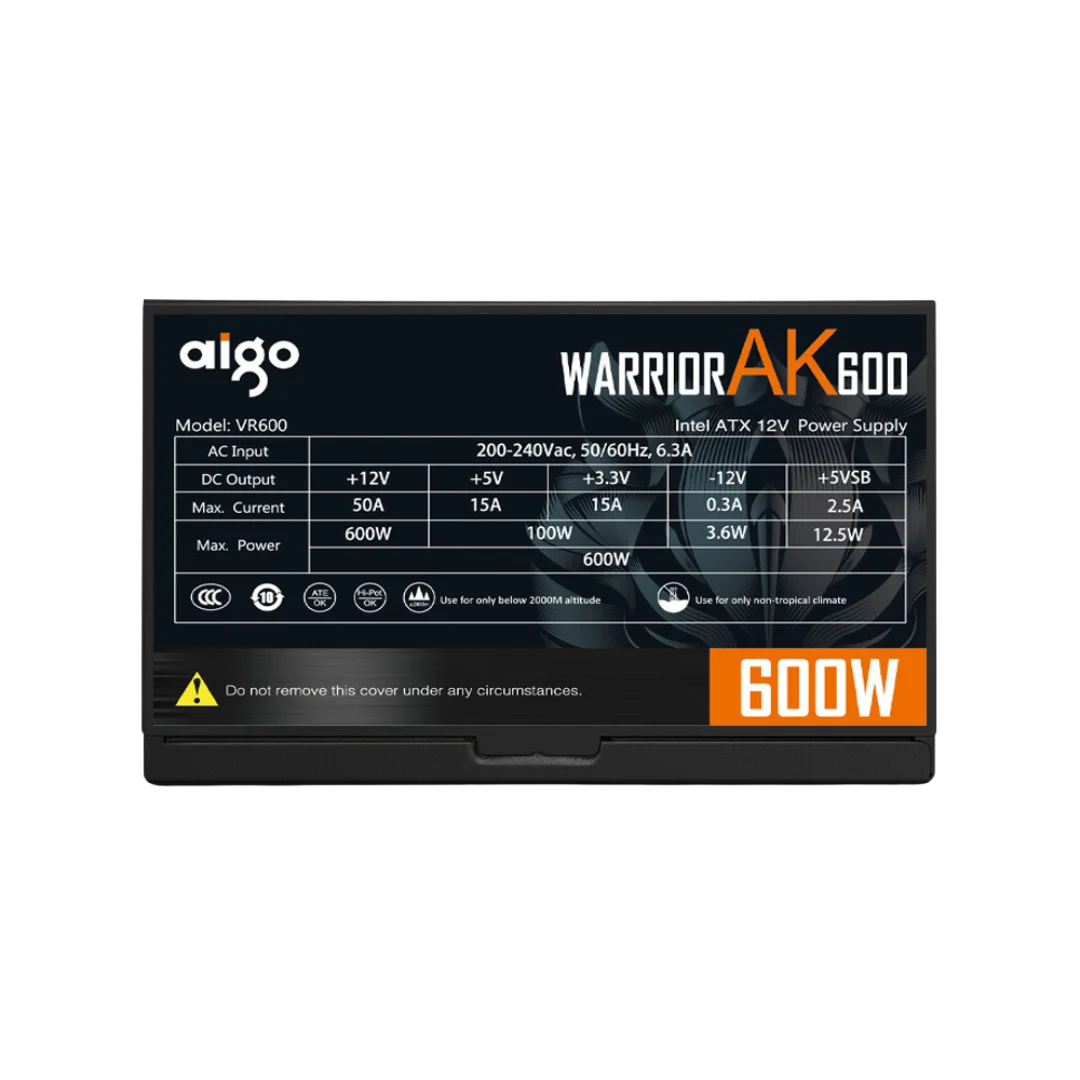

Specification

• Power supply size: 140mm * 150mm * 86mm
• Power standard: ATX 12V
• Applicable to CPU range: AMD, Intel
• PFC type: active PFC
• Maximum power: 600W
• Efficiency: 80%
• Input voltage: 160V-264V
• + 3.3V output current 20A
• + 5V output current 15A
• + 12V1 output current 48A
• – 12V output current 0.3A
• + 5Vsb output current 2.5A
• Support wide voltage: Yes
• Support temperature control PWM: Yes
• Certification: CB, CCC, FCC, Class, B, CE, ROHS
• Product weight: 1900g
• Support power: 20P / 24P motherboard
• Power Output Design: Multiplex + 12V
• IDE interface: 2
• SATA interface: 4
• CPU interface: P4 + 4
• Video card interface: (6PIN + 2)* 2

Package Included:

• 1 x Power Supply
• 1 x Power Supply Cables
• 1 x Installation instruction

Technical Specs

• PFC Type: Active
• Number of SATA Ports: 4
• Graphics Card 12V Pin Number: 2 x8 pin +2 x6 pin
• D-type Bus Number: 2
• CPU Power Connector: 8 pin
• Package: Yes
• Interface Type: 20 + 4Pin
• Application: Desktop,Server
• Model Number: aigo AK600
• Output: 600w 80plus
• Input Voltage: 200-240vac
• Modular: Non-Modular
• 80 PLUS Certification: Other Certification
• Brand Name: Aigo
• Origin: Mainland China
• Certification: CE
• Features 1: pc power supply
• Features 2: fuente de alimentacion pc
• Features 3: power supply pc
• Features 4: atx power supply
• Features 5: fonte atx
• Features 6: fonte 600w
